NTBStop Switch
Stop Switch
N.T.B's Stop switches have passed operation tests for 200,000 times.
This is equivalent to 10,000km when activated once every 50m travel.
This is equivalent to 10,000km when activated once every 50m travel.
 |

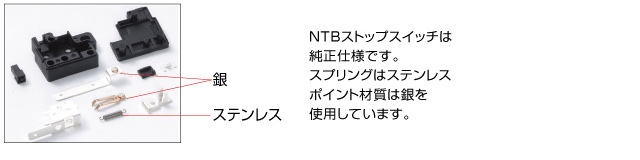

[ENG] Silver NTB Stop Switch has genuine specification.
Stainless steel The spring is made of stainless steel and the point material is silver.
HONDA
SSH-01
Fitments
Widely compatible with 50cc scooters and off-road motorcycles
※FRONT DISC models only
Compatible with 35340-MA5-671
SSH-02
Fitments
Widely compatible with on-road motorcycles、（YAMAHA) XJR400
※FRONT DISC models only
Compatible with 35340-MA5-600
SSH-03 ※1
Fitments
SUPER CUB 50 C50CMP/S/V/X、C50DP/S/V/X
GYRO Up/Canopy TA01/02
Front
Total length：approx. 340mm
Compatible with 35340-GBJ-000
SSH-04 ※1
Fitments
SUPER CUB / PRESS CUB 50 AA01
TODAY AF64 NVS501SH2/4～7
Front
Total length：approx. 450mm
Compatible with 35340-GAC-003
SSH-05 ※2
Fitments
MONKEY/GORILLA Z50J
MONKEY AB27 Z50JY/J1～2/J4～7
Front
Total length：approx. 550mm
Compatible with 35340-GAN-620
SSH-06
Fitments
FORZA MF06/MF08/MF10/MF12
FORESIGHT MF04
Rear
Compatible with 35340-KFG-003
SSH-07
Fitments
PCX JF81/JF84
PCX150 KF30
Rear
Compatible with 35345-K35-V01
SSH-08
Fitments
GIORNO AF70
Compatible with 35340-GGL-J01
SSH-09
Fitments
GIORNO AF77 Frame №1000001～1104920(Front/Rear shared)
TACT /Basic AF75/AF79 Frame №1100001～1221721(Front/Rear shared)
Dio110 JF58/JK03(Rear)
Compatible with 35340-GFM-J11
SSH-10
Fitments
GIORNO AF77（Frame №1104921～）
TACT /Basic AF79（Frame №1221722～）
JOG AY01(All Front/Rear shared)
Compatible with 35340-GJA-J62/B3K-82530-01
※1 May be up to 100mm longer than the OEM part.
※2 May be up to 50mm longer than the OEM part.
YAMAHA
SSY-01RB
Fitments
Compatible with YAMAHA models
Front
Total length：approx. 930mm
SSY-02
Fitments
SEROW 250 XT250 3C51～5/7
Front
Compatible with 3C5-83980-00
SSY-03
Fitments
MAJESTY YP250 4HC1～5
VIRAGO XV250/S 3DM1～9/A～F
Front
Compatible with 2UJ-83980-00
SSY-04
Fitments
MAJESTY S XC155 2LD1～4
Front
Compatible with 1DK-H3980-00
SSY-05
Fitments
SR400 3HTC～G/L/P/S
VIRAGO XV400 3JB1～8
Front
Compatible with 26H-83980-00
SSY-06
Fitments
Vino AY02 (Front/Rear shared)
Compatible with B4K-82530-01/B4K-82550-01
SUZUKI
SSS-01
Fitments
ADDRESS 110 CE47A
ADDRESS 125 DT11A
Waterproof design
Comes with screws
Compatible with 57460-14J02/57460-14J01
UNIVERSAL
SSU-01
Fitments
YAMAHA(Except American type)/SUZUKI/KAWASAKI
Widely compatible with off-road motorcycles ※FRONT DISC models only
Compatible with 27010-1170/0025
